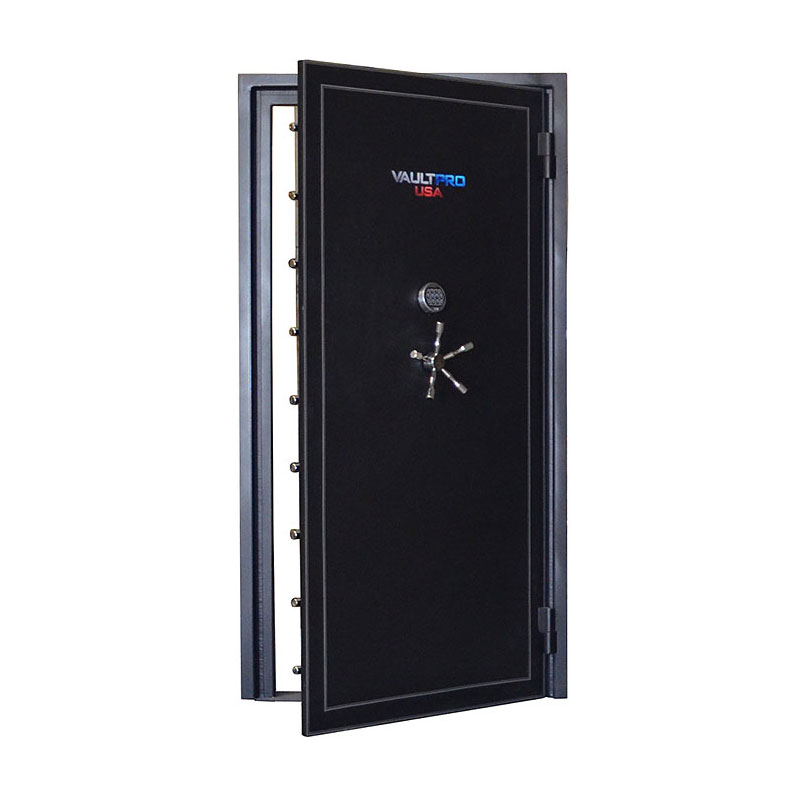

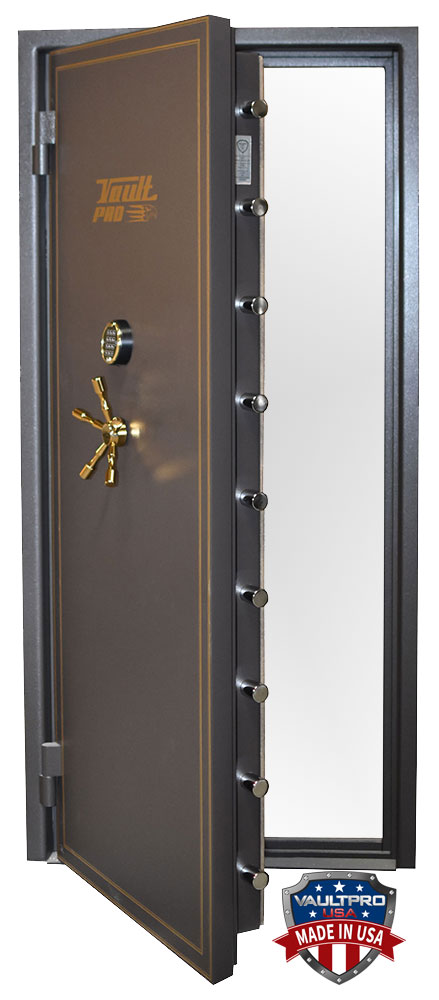

Vault Pro Atlas Series Vault Door

Price: $6,503.00

Atlas Series Heavy Duty Vault Doors 4-Way 22-Bolt Locking System Vault Doors Atlas Vault Doors come standard with a list of security & safety features most other vault door manufacturers only wish they could match. The Atlas door features a ½”... more

Atlas Series Heavy Duty Vault Doors

4-Way 22-Bolt Locking System Vault Doors

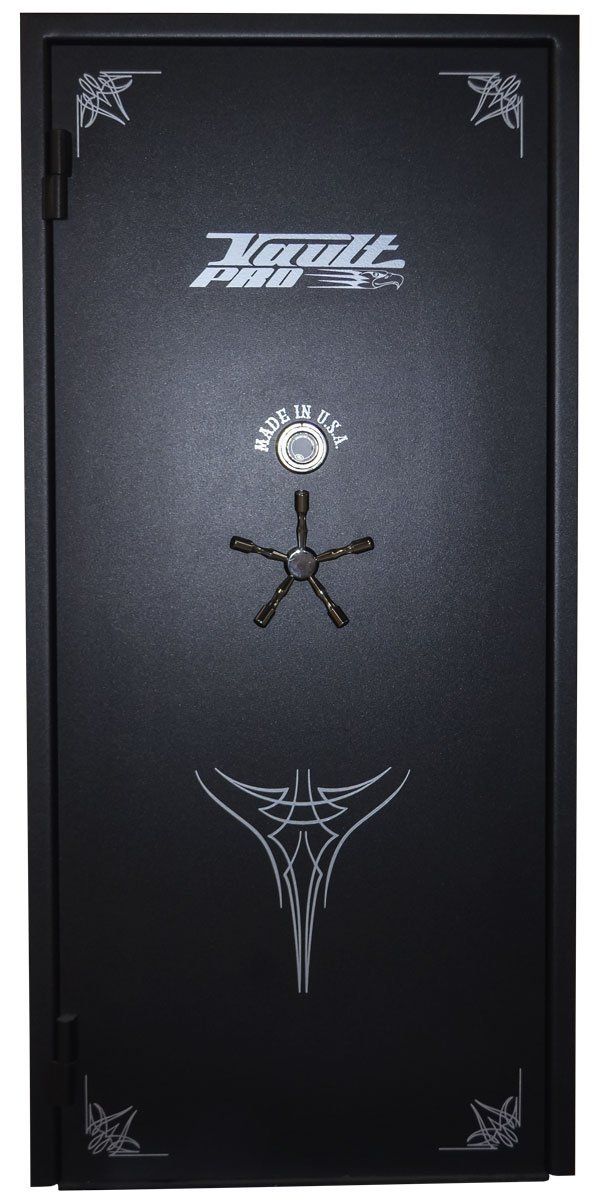

Atlas Vault Doors come standard with a list of security & safety features most other vault door manufacturers only wish they could match. The Atlas door features a ½” solid steel front plate in the 2” step system door which is hand fitted to a ¼” solid steel frame, 4-Way - 22 bolt locking system and internal release. 3/4" 60+ Rockwell Hard plate protects your S&G Spy-Proof Lock with Locking Dial from drill attacks. A 3 + 1 Titan Multi Re-locker system backs up your lock from punch attacks. 2300° Ceramic Fire Blanket provides beyond 2 hour fire protection. Choose from our popular standard colors or create your own custom door with gloss paint and custom finishes & hand pinstripes.

Atlas Series Standard Features

1/2" Solid Steel Front Plate
2" Step-System Door - Overall Door Thickness 6¼”
2 Hour Fire Door - 2300° Ceramic Fire Blanket
1/4" Solid Steel Frame
NEW! 4-Way 22-Bolt Locking System

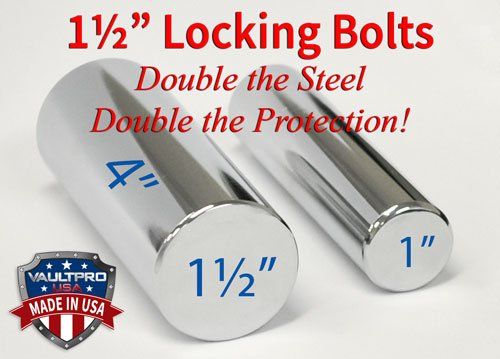

4" x 1½" Fully Rotating Locking Bolts
Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock with Locking Dial (Digital Lock Available)
Adjustable Ball Bearing Hinges
3/4" 60+ Rockwell Hard plate
Internal Release
Carpeted Door Panel
Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)

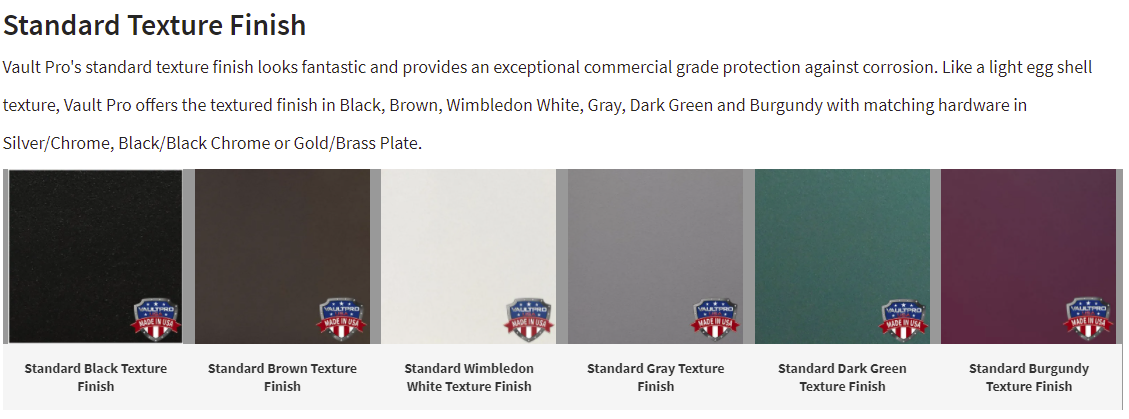

Standard Texture Colors: Black, Wimbledon White, Brown, Gray, Dark Green and Burgundy - Gloss and Custom Finishes Available
Choice of Silver, Gold or Black Matching Hardware

Atlas Series Vault Door Specifications

Door: 2" Step System Door with 1/2" Solid Steel Front Plate
Frame Thickness: 1/4" Solid Steel
Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
Locking Bolt System - 4-Way - Fully Active
Number of Locking Bolts: 22 - 4" x 1½" Locking Bolts Fully Active Bolts, 18 - Fully Rotating
Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
Hard Plate: 3/4" Solid 60+ Rockwell Hard Plate
Internal Release: Yes
Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish

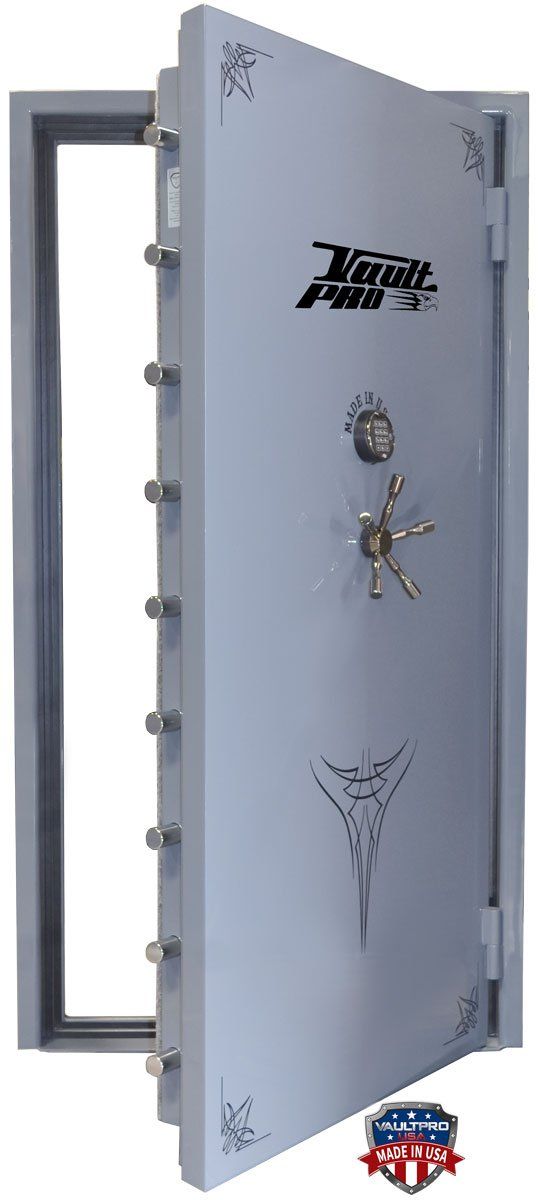

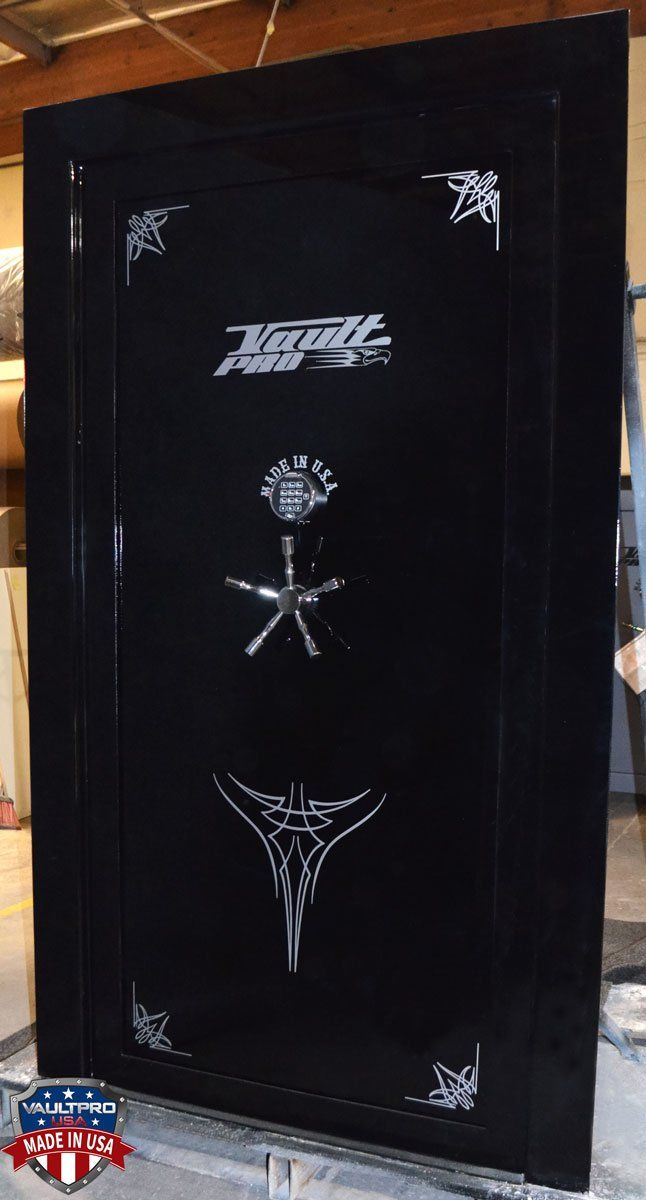

Gloss and Custom Finish Available: Yes
Hardware: Choice of Silver, Gold or Black Matching Hardware
Warranty: Limited Lifetime

IN-SWING HINGING OPTION (Any Door - Adds up to 200 lbs.) ADD $400 In-Swing frame depth must be 6½" or larger

less

Item #: Vault Pro Atlas Series

: VaultPro Custom Built Ships in 10 to 15 weeks

Stainless Steel Pull Handle / add $250.00

Quantity:

*Note Crate, Palletizing & Packaging of the door is applied at checkout*

Description

Atlas Series Heavy Duty Vault Doors

4-Way 22-Bolt Locking System Vault Doors

Atlas Series Standard Features

1/2" Solid Steel Front Plate
2" Step-System Door - Overall Door Thickness 6¼”
2 Hour Fire Door - 2300° Ceramic Fire Blanket
1/4" Solid Steel Frame
NEW! 4-Way 22-Bolt Locking System
4" x 1½" Fully Rotating Locking Bolts
Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock with Locking Dial (Digital Lock Available)
Adjustable Ball Bearing Hinges
3/4" 60+ Rockwell Hard plate
Internal Release
Carpeted Door Panel
Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Texture Colors: Black, Wimbledon White, Brown, Gray, Dark Green and Burgundy - Gloss and Custom Finishes Available
Choice of Silver, Gold or Black Matching Hardware

Atlas Series Vault Door Specifications

Door: 2" Step System Door with 1/2" Solid Steel Front Plate
Frame Thickness: 1/4" Solid Steel
Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
Locking Bolt System - 4-Way - Fully Active
Number of Locking Bolts: 22 - 4" x 1½" Locking Bolts Fully Active Bolts, 18 - Fully Rotating
Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
Hard Plate: 3/4" Solid 60+ Rockwell Hard Plate
Internal Release: Yes
Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
Gloss and Custom Finish Available: Yes
Hardware: Choice of Silver, Gold or Black Matching Hardware
Warranty: Limited Lifetime

IN-SWING HINGING OPTION (Any Door - Adds up to 200 lbs.) ADD $400 In-Swing frame depth must be 6½" or larger

Specifications

Specifications:

80" x 30" x 6" to 10" (frame depth)	1065 lbs.
80" x 35" x 6" to 10" (frame depth)	1375 lbs.
80" x 40" x 6" to 12" (frame depth)	1775 lbs.
80" x 45" x 6" to 12" (frame depth)	2195 lbs.
In-Swing Hinging	Adds up to 200 lbs.

Rough Opening:
Add 1/4" to the Height of the Door and 1/2" to the Width of the Door

Clear Thru Space
80" x 30" Clear Thru Space	----	Out Swing	----	25"
80" x 30" Clear Thru Space	----	In Swing	----	23"
80" x 35" Clear Thru Space	----	Out Swing	----	30"
80" x 35" Clear Thru Space	----	In Swing	----	28"
80" x 40" Clear Thru Space	----	Out Swing	----	35"
80" x 40" Clear Thru Space	----	In Swing	----	33"
80" x 45" Clear Thru Space	----	Out Swing	----	40"
80" x 45" Clear Thru Space	----	In Swing	----	38"

Specification/Installation Instructions Below, click to download

80" x 30" Outswing Door

80" x 30" Inswing Door

80" x 35" Outswing Door

80" x 35" Inswing Door

80" x 40" Outswing Door

80" x 40" Inswing Door

80" x 45" Outswing Door

80" x 45" Inswing Door

Additional Information

Warranty:

Fire - If your Vault Pro, Inc. safe or vault door is damaged during a fire, Vault Pro, Inc. will replace your safe for Free.

Break-In - If your Vault Pro, Inc. safe of vault door is attacked and force entered they will either repair or replace it for free.

Manufacturer Defect - In most cases, Vault Pro, Inc. will repair your safe or vault door on site due to manufacturer defect.

Extended Life Time Warranties

Lifetime Lock and Attempted Break-In are not standard warranties. Locks are warranted by the manufacturer for a period of one year from date of purchase. Extended life time warranties on locks and Attempted Break-in Warranties are available at time of purchase or within 30 days of purchase.
Vault Pro, Inc. does not cover the contents of safes or vaults, or the installation/removal of safes or vault doors for any reason under any circumstances.
A police/fire report will need to be properly filed and provided to Vault Pro along with proof of purchase and owners identification in order to activate any fire or break-in warranty. In some cases Vault Pro will require your safe or vault door to be returned for proper inspection and repair/replacement. Vault Pro will guarantee return shipping on any product properly sent for repair or replacement.
