Vault Pro Elite Series Vault Door

Price: $4,711.00
Elite Series Vault Room DoorsIf you are looking for the best in class fire protection and the exceptional security only a 2” Step System Door and perfectly matched frame combination sealed against dual Palusol® gaskets can provide, than the Elite... more
Elite Series Vault Room Doors

If you are looking for the best in class fire protection and the exceptional security only a 2” Step System Door and perfectly matched frame combination sealed against dual Palusol® gaskets can provide, than the Elite Series Vault Door is the door for you.


The Elite Series Vault Door is Vault Pro’s most popular vault door for a good reason…superior security and fire protection as well as a long list of standard features that include custom fit doors, multiple relockers, 2300° Ceramic Fire Blanket, choice of our most popular colors and hardware and an even longer list of available upgrades and custom options.


Vault Pro engineered the Elite Series Vault Door to exceed all ICC-500 and FEMA 320 & 361 recommended standards for use in storm & tornado shelters and as file room doors.

Elite Series Standard Features

Engineered to Exceed FEMA 320& 361, ICC-500
2" Step System Door - Overall Door Thickness 6¼”
2 Hour Fire Door 1550°
Dual Palusol® Gaskets
2300° Ceramic Fire Blanket
1/4" Solid Steel Frame
Adjustable Ball Bearing Hinges
18-Bolt Locking System
Active Bolts 4" x 1½" Fully Rotating
Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock (Digital Lock Available)
1/2" 60+ Rockwell Hard plate
Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Internal Release
Carpeted Door Panel

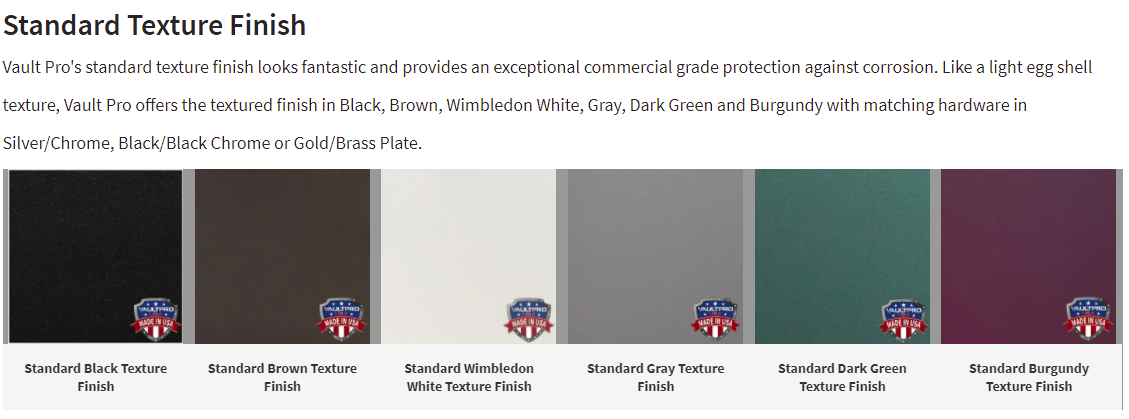

Standard Texture Colors: Black, Wimbledon White, Brown, Gray, Dark Green and Burgundy. Gloss and Custom Finishes Available
Choice of Silver, Gold or Black Matching Hardware

Elite Series Vault Door Specifications

Door: 2" Step System Door
Frame Thickness: 1/4" Solid Steel
Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
Number of Locking Bolts: 18 - 4" x 1½" Locking Bolts. Active Bolts Fully Rotating
Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
Hard Plate: 1/2" Solid 60+ Rockwell Hard Plate
Internal Release: Yes
Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
Gloss and Custom Finish Available: Yes
Hardware: Choice of Silver, Gold or Black Matching Hardware
Warranty: Limited Lifetime

less
Item #: Vault Pro Elite Series
: VaultPro Custom Built Ships in 10 to 15 weeks
Select Size:

Frame Depth:

Door Hinge Side When Facing the Door:

Door Swing:

Select Color:
  • Standard Black Texture Finish
  • Standard Burgundy Texture Finish
  • Standard Brown Texture Finish
  • Standard Gray Texture Finish
  • Standard Dark Green Texture Finish

Door Handle 5-Prong:

Select Lock Option:

Accessories:

Quantity:
*Note Crate, Palletizing & Packaging of the door is applied at checkout*
Elite Series Vault Room Doors

If you are looking for the best in class fire protection and the exceptional security only a 2” Step System Door and perfectly matched frame combination sealed against dual Palusol® gaskets can provide, than the Elite Series Vault Door is the door for you.


The Elite Series Vault Door is Vault Pro’s most popular vault door for a good reason…superior security and fire protection as well as a long list of standard features that include custom fit doors, multiple relockers, 2300° Ceramic Fire Blanket, choice of our most popular colors and hardware and an even longer list of available upgrades and custom options.


Vault Pro engineered the Elite Series Vault Door to exceed all ICC-500 and FEMA 320 & 361 recommended standards for use in storm & tornado shelters and as file room doors.

Elite Series Standard Features

Engineered to Exceed FEMA 320& 361, ICC-500
2" Step System Door - Overall Door Thickness 6¼”
2 Hour Fire Door 1550°
Dual Palusol® Gaskets
2300° Ceramic Fire Blanket
1/4" Solid Steel Frame
Adjustable Ball Bearing Hinges
18-Bolt Locking System
Active Bolts 4" x 1½" Fully Rotating
Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock (Digital Lock Available)
1/2" 60+ Rockwell Hard plate
Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Internal Release
Carpeted Door Panel
Standard Texture Colors: Black, Wimbledon White, Brown, Gray, Dark Green and Burgundy. Gloss and Custom Finishes Available
Choice of Silver, Gold or Black Matching Hardware

Elite Series Vault Door Specifications

Door: 2" Step System Door
Frame Thickness: 1/4" Solid Steel
Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
Number of Locking Bolts: 18 - 4" x 1½" Locking Bolts. Active Bolts Fully Rotating
Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
Hard Plate: 1/2" Solid 60+ Rockwell Hard Plate
Internal Release: Yes
Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
Gloss and Custom Finish Available: Yes
Hardware: Choice of Silver, Gold or Black Matching Hardware
Warranty: Limited Lifetime

Specifications:

80" x 30" x 6" to 10" (frame depth) 850 lbs.
80" x 35" x 6" to 10" (frame depth) 935 lbs.
80" x 40" x 6" to 12" (frame depth) 1040 lbs.
80" x 45" x 6" to 12" (frame depth) 1130 lbs.
    In-Swing Hinging Adds up to 300 lbs.

    Rough Opening:

    Add 1/4" to the Height of the Door and 1/2" to the Width of the Door

    Clear Thru Space

    80" x 30" Clear Thru Space----Out Swing----25"

    80" x 30" Clear Thru Space----In Swing----23"

    80" x 35" Clear Thru Space----Out Swing----30"

    80" x 35" Clear Thru Space----In Swing----28"

    80" x 40" Clear Thru Space----Out Swing----35"

    80" x 40" Clear Thru Space----In Swing----33"

    80" x 45" Clear Thru Space----Out Swing----40"

    80" x 45" Clear Thru Space----In Swing----38"


    Specification/Installation Instructions Below, click to download

    80" x 30" Outswing Door

    80" x 30" Inswing Door

    80" x 35" Outswing Door

    80" x 35" Inswing Door

    80" x 40" Outswing Door

    80" x 40" Inswing Door

    80" x 45" Outswing Door

    80" x 45" Inswing Door


    Warranty:

    Fire - If your Vault Pro, Inc. safe or vault door is damaged during a fire, Vault Pro, Inc. will replace your safe for Free.

    Break-In - If your Vault Pro, Inc. safe of vault door is attacked and force entered they will either repair or replace it for free.

    Manufacturer Defect - In most cases, Vault Pro, Inc. will repair your safe or vault door on site due to manufacturer defect.

    Extended Life Time Warranties

    • Lifetime Lock and Attempted Break-In are not standard warranties. Locks are warranted by the manufacturer for a period of one year from date of purchase. Extended life time warranties on locks and Attempted Break-in Warranties are available at time of purchase or within 30 days of purchase.
    • Vault Pro, Inc. does not cover the contents of safes or vaults, or the installation/removal of safes or vault doors for any reason under any circumstances.
    • A police/fire report will need to be properly filed and provided to Vault Pro along with proof of purchase and owners identification in order to activate any fire or break-in warranty. In some cases Vault Pro will require your safe or vault door to be returned for proper inspection and repair/replacement. Vault Pro will guarantee return shipping on any product properly sent for repair or replacement.
