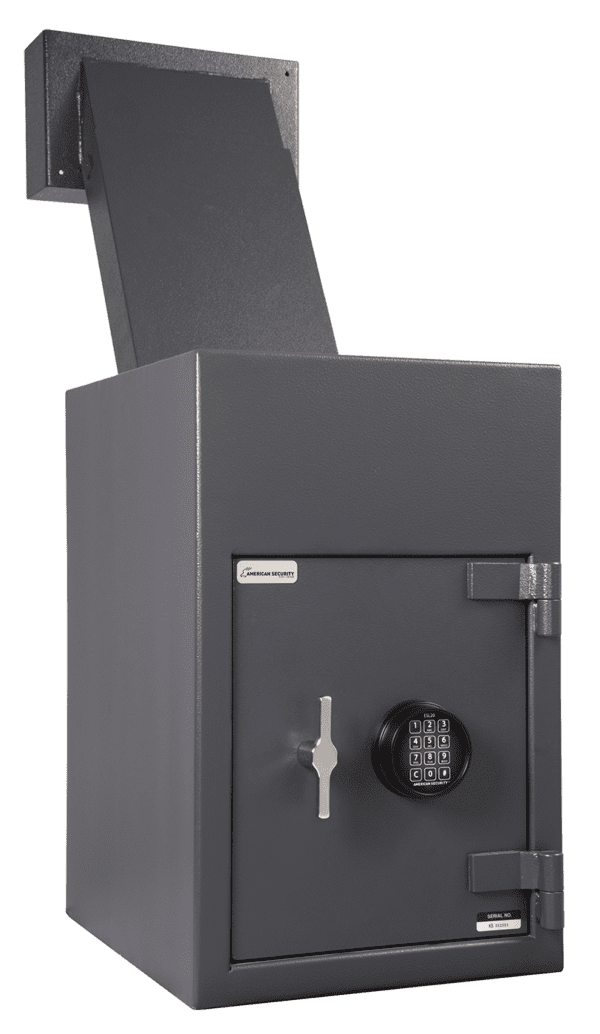

AMSEC DSR2516E2 Reverse Loading Depository Safe
A reverse loading deposit safe is convenient for those that want to
collect deposits through a wall with the safe in a locked room. The
AMSEC DSR2516 is your answer. With a body thickness of 1/8" solid steel
and a 1/2" solid steel door, this will give you extra security
protection. There are 3 1" diameter steel locking bolts to prevent pry
attacks on the door. Other features on the door include an auto lock
bolt detent system, an auxiliary relocking device and a large carburized
hardplate to prevent drill attacks.
The lock on the outside of the DSR2516E2 is a multi-user ESL20XL
digital electronic lock. This will allow you to program your employees
pin codes in the lock. If one leaves or is let go, you can easily change
that one pin code without everyone having to remember a new
combination. Other features on this lock include a time delay
functionally, dual control mode (to require two users to get into the
safe) and an armored car override.
The reverse hopper on the AMSEC DSR2516E2 is designed for large
package sizes of 4" D x 2.50" W x 9.50" L. The chute is adjustable and
is designed for wall thicknesses between 6.88" and 13.88" deep. The
chute is protected by two "anti-fish" baffles.
The till portion of the storage can hold up to 4 standard till trays.
It has an internal capacity of 1.39 cubic feet. The receiving locker
has an inside dimension of 5.88" H x 15.75" W x 13.75" D for your
deposits. It is protected by a 1/4" solid steel plate door.
Features:
BODY
- 1/8” solid steel plate
- Four anchor bolt holes
DOOR
- ½” solid steel plate
- ESL20XL, U.L. Type 1 High Security electronic lock
- Time Delay
- Multiple users
- Dual Control
- Armored car override.
- Three 1” diameter steel locking bolts.
- Auto lock bolt detent system
- Auxiliary relocking device.
- Large carburized hardplate

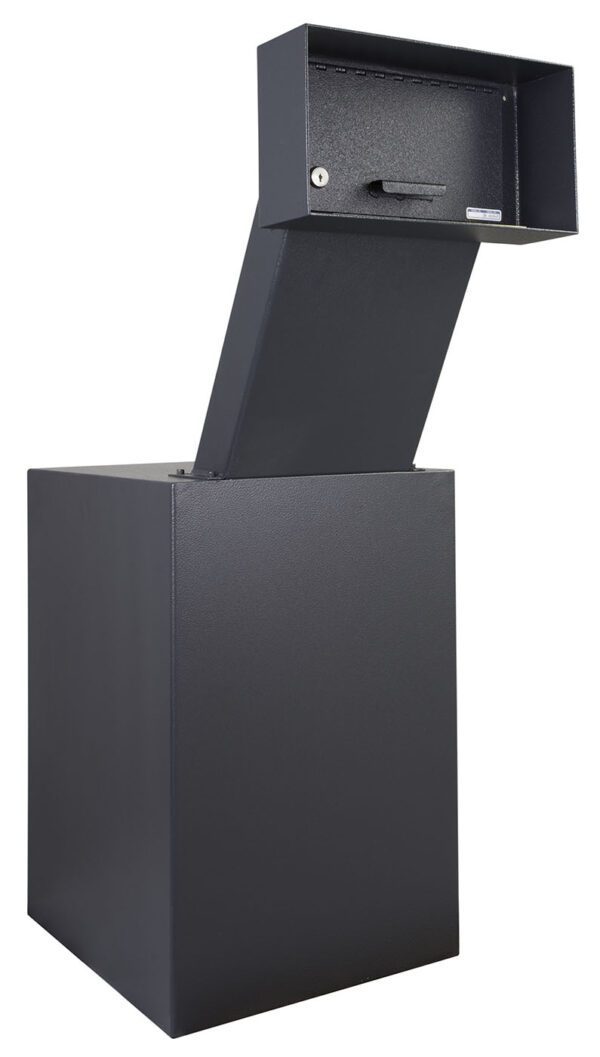

REVERSE HOPPER
- Large package sizes: 4.00” D x 2.50” W x 9.50” L
- 1/8” solid steel plate
- Protected by dual “anti-fish” baffles
- Thru the wall depository with adjustable chute
- Wall Thickness: 6.88" D to 13.88" D
- Floor Height: 36.75" W to 48.75" W
- Drop chute adjustable from 44.25" minimum height to 55.50" maximum height.

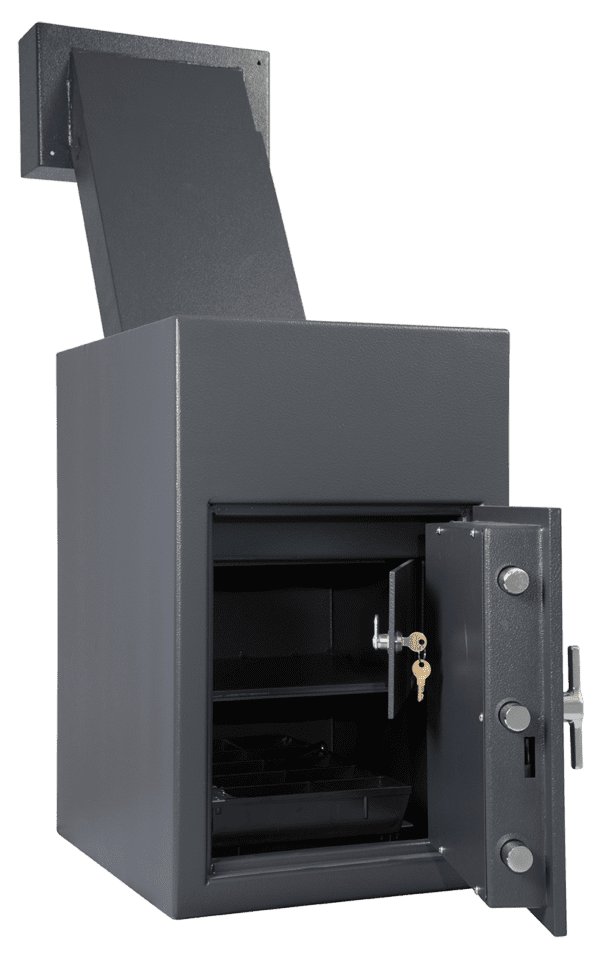

INTERIOR
Receiving locker:
- 1/4" solid steel plate
- Clear door: 6.00" H x 10.00" W
- Inside Dimensions: 5.88" H x 15.75" W x 13.75" D
- Cubic Capacity: 1272 cu/in. (0.74 cubic feet)
Till Storage Compartment:
- Fits up to 4 till trays
- Clear door: 14.50" H x 12.00" W
- Inside Dimensions: 9.00" H x 15.75" W x 17.00" D
- Cubic capacity: 2410 cu/in. (1.39 cubic feet)
Dimensions:
Outside: 25.00" H X 16.00" W X 20.00" D
Inside: Receiving Locker: 5.88" H x 15.75" W x 13.75" D
Till Storage Compartment: 9.00" H x 15.75" W x 17.00" D
Interior Cubic Feet: Receiving Locker: 0.74
Till Storage Compartment: 1.39
Weight: 260.00
Burglar Rating: B-Rate
